Rated voltage 10kV overhead insulated cable
    • 1/2

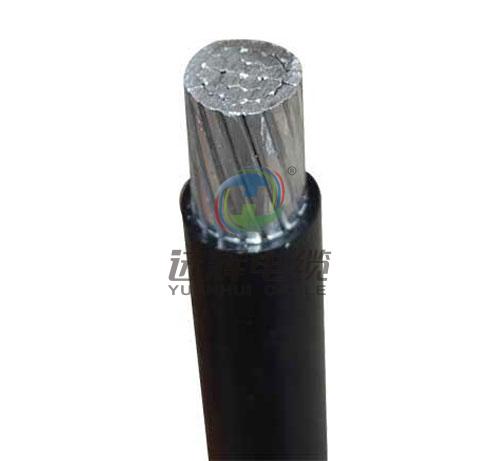

Rated voltage 10kV overhead insulated cable

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Detail

1. Product name: 10k V overhead insulated cable with rated voltage

2. Implementation standard: GB / T 14049-2008

Model 3 specifications: JKYJ, JKLYJ, JKLHYJ, JKY, JKLY, JKLHY

Adopt conductor: copper, aluminum, aluminum alloy; core number: 1 core; specification: 10mm2 to 300mm2;

4. Main usage: overhead fixed laying

5. Features

5.1 Rated voltage is 10k V;

5.2 The cable laying temperature shall not be lower than-20℃

5.3 Maximum temperature of the cable during short circuit (maximum duration not exceeding 5s):

Crosslinked polyethylene insulation- - -250℃ high-density polyethylene insulation- - -150℃

5.4 Maximum long-term allowable working temperature of the cable conductor:

Crosslinked polyethylene insulation- - -90℃ high-density polyethylene insulation- - -75℃

5.5 The allowable bending radius of the cable shall not be less than 20 times (cable outer diameter + conductor diameter)

6. Storage and transportation:

6.1 Cables shall not be stored in the open air, and the cable trays shall not be placed flat;

6.2 It is strictly prohibited to throw the cable tray equipped with the cable from a high place, and it is strictly prohibited to mechanically damage the cable;

6.3 Hoisting the packaging parts, it is strictly prohibited to lift multiple cables at the same time;

6.4 During cable transportation, the cable tray must be stabilized and fixed with appropriate methods to prevent mutual collision or overturning.

7 Performance and parameters

Nomnominal loading surface / mm2

The least conductor
Single line root number

conductor diameter
(reference value)mm

Minimum thickness of the conductor shield layer
(approximation)/mm

Nominal thickness of insulation at / mm

Nominal thickness of insulation shield layer / mm

Conductor resistance at 20℃
No greater than / Ω / km

The pulling force is not less than / N


Thin insulation

Ordinary insulation

Hard copper core

Soft copper core

Aluminum core

Aluminum alloy core

Hard copper core

Aluminum core

Aluminum alloy core


10
16
25
35
50
70
95
120
150
185
240
300
400

6
6
6
6
6
12
15
18
18
30
34
34
53

3.8
4.8
6.0
7.0
8.3
10.0
11.6
13.0
14.6
16.2
18.4
20.6
23.8

0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6

-
-
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5

3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4

-
-
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0

-
-
0.749
0.540
0.399
0.276
0.199
0.158
0.128
0.102 1
0.077 7
0.061 9
0.048 4

1.830
1.150
0.727
0.524
0.387
0.368
0.193
0.153
-
-
-
-
-

3.080
1.910
1.200
0.858
0.641
0.443
0.320
0.253
0.206
0.164
0.125
0.100
0.077

3.574
2.217
1.393
1.007
0.744
0.514
0.371
0.294
0.239
0.190
0.145
0.116
0.090 1

-
-
8465
11731
16502
23461
31759
39911
49505
61846
79823
99788
133040

-
-
3762
5177
7011
10354
13727
17399
21033
26732
34679
43349
55707

-
-
6284
8800
12569
17596
23880
30164
37706
46503
60329
75411
100548


A The overhead cable of light and thin insulation structure has no internal semi-conductive shield layer;
The approximation of b is a value that is neither verified nor checked, but should be fully considered in design and process manufacturing.


Conductors and technical parameters of overhead insulated cables
